Customized Retractable without construction aluminium alloy flood baffle



Aluminum Alloy Profiles Flood Barrier



description of  products





This product has an adjustable length(adjustment range within 10 cm). The characteristics of better waterproof effect avoid the phenomenon of deep leakage due to the inaccurate length of the baffle,and truly realize the goal of free installation of the border and zero damage to the wall

















       single chip size : (height*thickness*wall thickness) 215MM*50MM*2.2MM



        Yield strength  ≥ 110MPA



       Strength  of extension: ≥160MPA (MPA)



       Border material :   6063--T5 Aluminum alloy extrusion molding,the surface using sand blasting,         ,electrophorsis, oxidation treatment.



        Border size: (Length*width*thickness) 215MM*40MM*2MM



          Sealing material :   Baffle joints are provided with card slots and EPDM waterproof sealing strips. The baffke plate that is in direct contact with the ground is provide with 25 thicker waterproof rubber strips . Both ends of the baffle plate are provided with sealing covers,which are integrated mold forming to prevent dirt from entering the hollow parts.



ground material : 304 stainless steel



specification(height*width*wall thickness):  60MM*50MM*1.5MM



                                                       measurement mode



















Steps for removing flood baffle

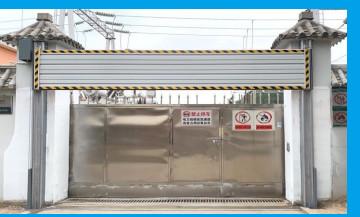

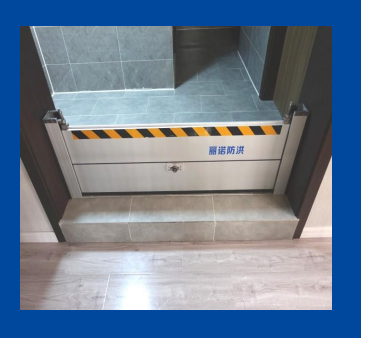

Practical case









Patent security











 Range of  application



It is suitable for unattended substation, garage entrance  and other places with flood and explosion prevention needs.
